Cycle speed maximum (with good CN mold) |
Forming adn cutting production cycle of up to 30 cycles/min. Single forming production cycle of up to 35 cycles/min. |
|
設備運轉大(da)速度(在使用(yong)國內品質好的(de)(de)模具的(de)(de)情況下) |
成型(xing)沖(chong)切可以達到30周(zhou)期每分鐘(zhong),單成型可達(da)35周期每分鐘(zhong) |
|
Dry cycle speed |
50 cycles/min |
|
空機運行(xing)周期 |
50周期每分鐘(zhong) |
|
|
760x580mm |
|
大(da)成型面積 |
|
|
Forming area minimum |
375x350mm |
|
小成型面(mian)積 |
|
|
Closing force (Forming/Cutting station) |
250KN/500KN |
|
閉合力(成型(xing)/沖切站(zhan)) |
|
|
Height of formed part above or below film level |
150mm |
|
成型產(chan)品高(gao)度(du)，正向/負向 |
|
|
Forming station Top / Bottom table movement |
170mm |
|
成(cheng)型(xing)站上/下工作臺移(yi)動 |
|
|
Film thickness range (depending on film properties) 膜料(liao) |
0.2-1.8mm |
|
厚度范圍（取(qu)決于膜料(liao)特性） |

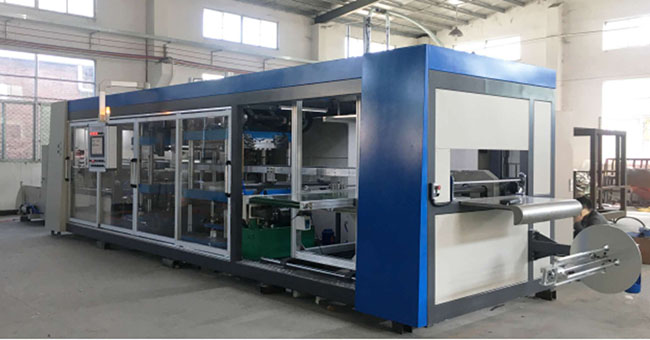

1 Integrated forming, punching, stacking, and waste winding station, sheet stock treatment is more smooth, and energy consumption is less.
集成的(de)成型、沖切、堆疊(die)、廢料(liao)收(shou)卷工位(wei)，片(pian)料(liao)處理(li)更(geng)順暢(chang)，能源(yuan)消耗更(geng)低(di)。
2 Forming and cutting station use firm cast iron structure, matched with roller bearing's crankshaft to guarantee perfect forming, cutting.
成型及裁切站使(shi)用(yong)牢(lao)固的鑄鐵(tie)結(jie)構，配用(yong)滾柱(zhu)軸(zhou)承的曲臂保證成型,裁切。
3 Forming station with independent servo-plug drive on upper table, gives you more flexible to adjust the process, gets the best products.
成型站上工(gong)作臺獨(du)立伺服馬達驅(qu)動的輔助拉伸頭(tou)。可以讓您更(geng)靈活的調整生產工(gong)藝，得到好品質的產品。

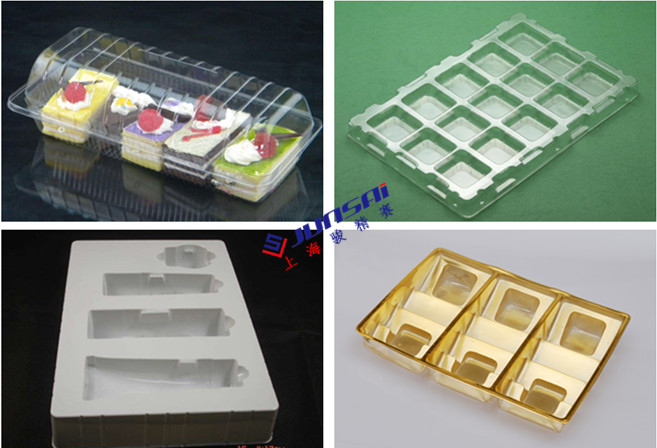

主要適用于PS、HIPS、PVC、PET、PP等塑料片材成型，生產各種盒、碟、托盤、碗、蓋等包裝制品。如：食品盒、蛋糕盒、快餐盒、糕點托盤、超市托盤、醫藥針劑托盤、口服液托盤.等
